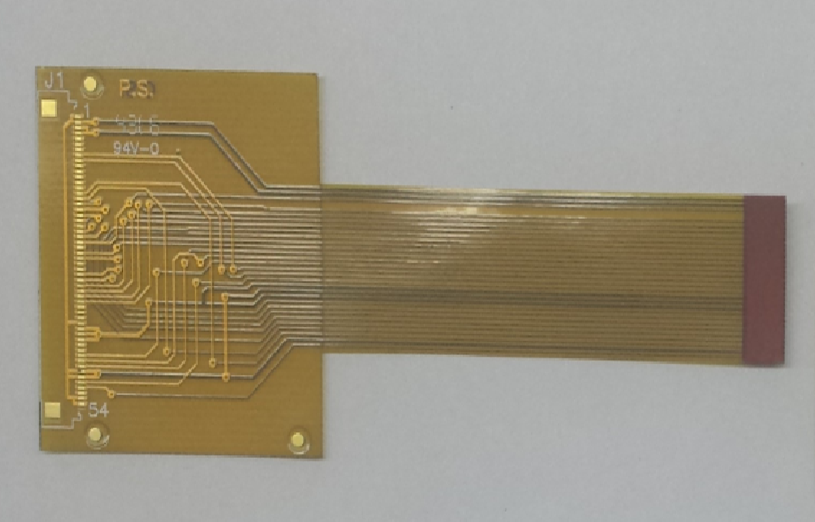

2 Layers Flexible PCB
| Boards Type & Structure | 2 Layers |
| Boards Material | SF305 051813DR |
| Boards Finished Thickness | 0.3 mm +/ - 10% ( Inluding The Stiffener) |
| The Stiffener Thickness |
0.15 mm PI Stiffener For Right Side 0.2 mm FR4 Stiffener For Left Side |
| Boards Finished Copper | 22 – 25 um For Each layer |
| Cover lay Colour | Yellow |
| Silkscreen Colour | White |
| Surface Finished | Immersion Gold |
| Min Line Width / Spacing | 0.15 mm / 0.2 mm |
| Min Hole Size | 0.4 mm |
| PCS Size | 80 mm * 35.43 mm |
